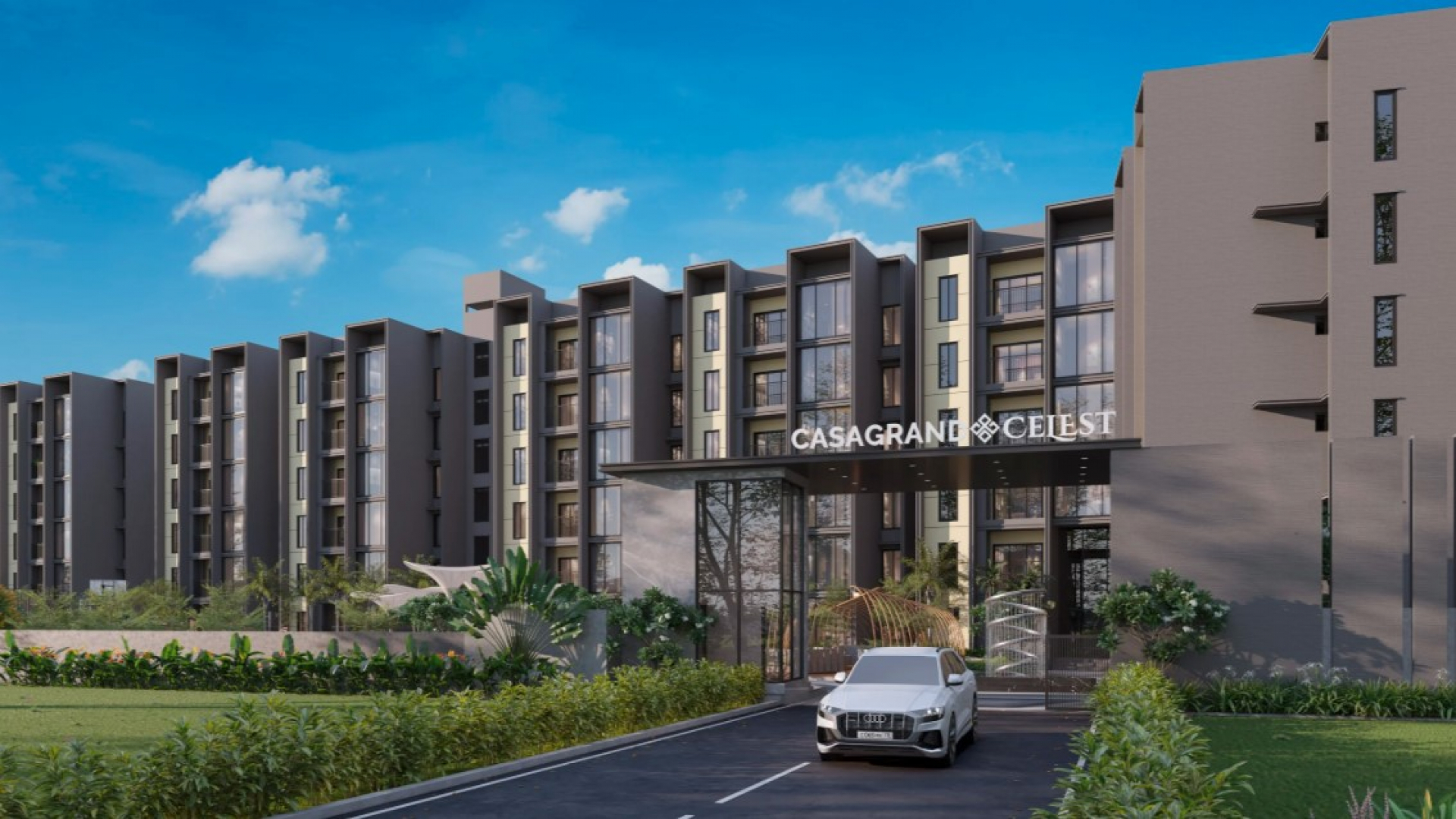

Casagrand Celest

STRUCTURE

RCC Framed structure designed for seismic compliant (Zone 3)

200mm for external walls & 100mm for internal walls

Floor height (incl. slab): Will be maintained at 2950mm

Anti–termite treatment will be done

WALL FINISH

Finished with 2 coats of putty, 1 coat of primer & 2 coats of premium emulsion

Finished with 2 coats of putty, 1 coat of primer & 2 coats of tractor emulsion

Finished with texture, 1 coat of primer & 2 coats of exterior emulsion paint (Color as per architect design intent)

Glazed / Matte ceramic tile of size 300 X 450 mm for a height of 2250mm & above false ceiling will be with a coat of primer

Grid type false ceiling

FLOOR FINISH WITH SKIRTING

Vitrified tiles of size 600x600mm

Anti-skid ceramic tiles of size 300x300mm

Anti-skid ceramic tiles of size 300x300mm

Pressed tiles finish

KITCHEN & DINING

For Chimney, Water Purifier & Washing Machine

Inlet provision for Water Purifier, Inlet & Outlet provision for Washing Machine, Sink & Sink faucet

BALCONY

MS handrail finished with PU primer with enamel paint as per architect’s design intent

Wall-hung basin based on architect design intent wherever applicable

BATHROOMS

Jaquar or equivalent brand

Wall-mounted WC with Concealed cistern, Health faucet, Single lever diverter with overhead shower & wall hung wash basin

DOORS

Wide and fancy door frame with double side veneer shutter with polished finish of size 1050 x 2100mm with architrave.

Ironmongeries like door lock, tower bolts, door viewer, safety latch, Magnetic catcher, etc., of Yale /equivalent brand

Good quality door frame with double side laminated shutter of size 900 X 2100mm.

Ironmongeries like lock, magnetic catcher, door bush, tower bolt etc., of Yale/equivalent brand.

Good quality door frame with double side laminated shutter of size 800X2100mm.

Ironmongeries like one side coin & thumb turn lock without key, door bush, etc., of Yale/ equivalent brand

WINDOWS

Aluminium framed sliding shutter with see-through plain glass & MS grill / railing (wherever applicable) finished with Zinc Chromite primer and enamel paint

Sill treatment with granite

Aluminium framed sliding shutters with toughened glass

Aluminium framed fixed louver / openable shutter for ODU access (wherever applicable)

Sill and Soffit treatment with granite

ELECTRICAL POINTS

3 PHASE power supply connection

MCB & RCCB (Residual current circuit breaker)

Modular box & modular switches & sockets of good quality IS brand

Fire Retardant Low Smoke (FRLS) copper wire of good quality IS brand

Point in Living & Master bedroom and provision for other bedrooms

Provision in Living & Master Bedroom

Points in living / dining, & all Bedrooms

Point in all bathrooms

Point will be given in all bathrooms

DG Back-up 1BHK-350W, 2BKH-400W, 3BHK-500W

COMMON FEATURES:

Elevators of 10 passengers lift will be provided with Powder coat finish.

100% Power backup for common amenities such as Clubhouse, lifts, WTP, STP & common area lighting

Respective Unit numbers sign board will be provided in Lift lobby

Tile cladding at all floor levels.

Granite flooring at ground floor & tile flooring at other floors

Anti-skid tile of size 600 x 600mm flooring at all floors

Granite flooring at all floors

MS handrail with enamel paint finish in all floors

Pressed tile flooring

Good quality door frame with FRP shutters

: Ironmongeries like thumb turn lock, door closure, etc., of Yale / equivalent brand

OUTDOOR FEATURES:

Centralized UG sump with WTP (Min. requirement as per water test report)

Rainwater harvesting system (as per site requirement)

Centralized Sewage Treatment plant (as per site requirement)

CCTV surveillance cameras will be provided all around the building at pivotal locations in ground level

Security booth will be provided at the entry / exit

Site perimeter fenced by compound wall with entry gates for a height of 2100mm as per design intent and over that barbed fence wherever applicable

Suitable landscape at appropriate places in the project as per design intent

Interlocking paver block / equivalent flooring with demarcated driveway as per landscape design intent

Convex mirror for safe turning in driveway in / out (As per site requirement)

Highlighted points will be considered under the SH budget.
