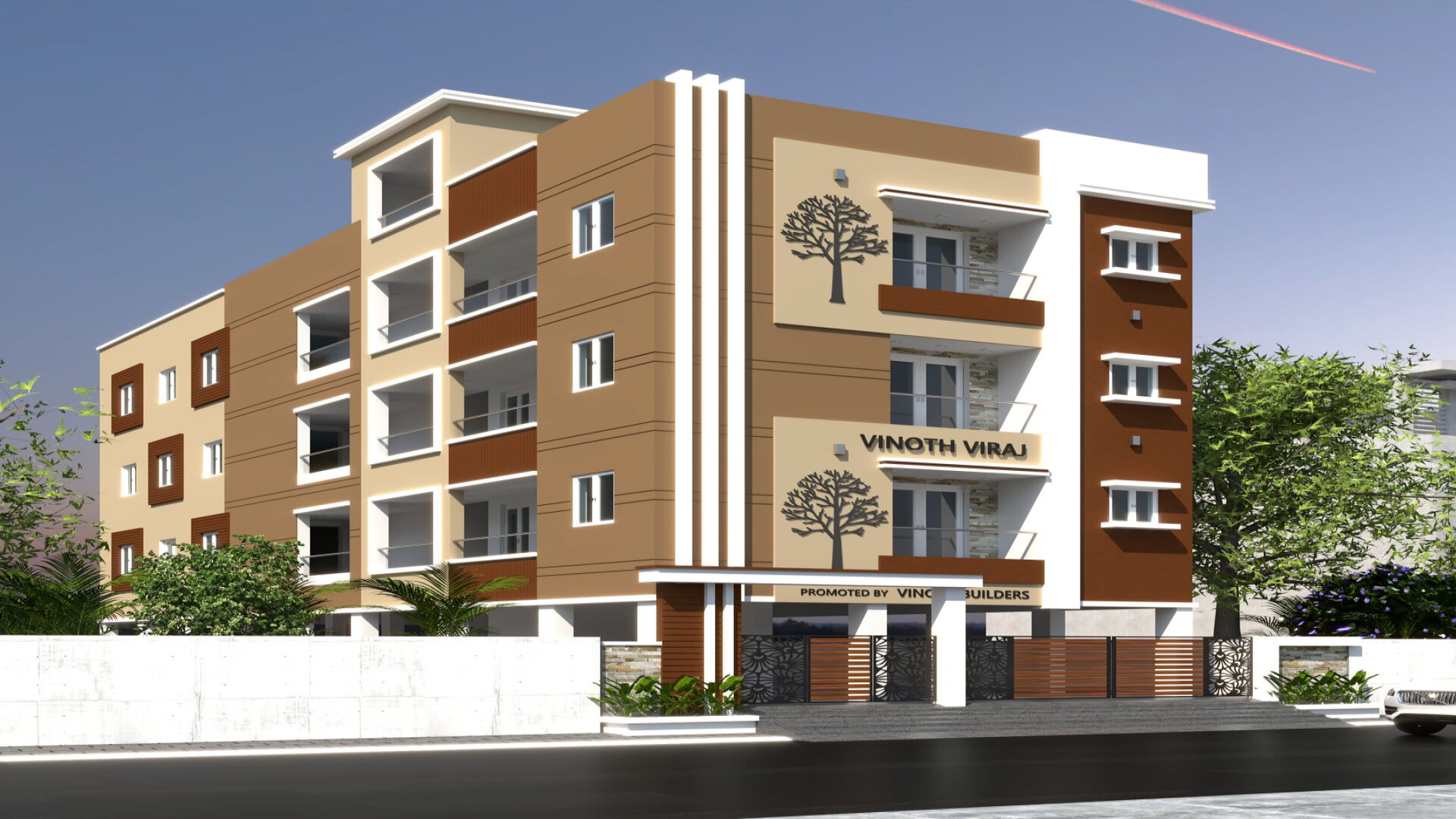

Vinoth Viraj

A. STRUCTURE:

1. Structure: Reinforced cement concrete framed Structure

2. Roof: Reinforced cement concrete roof and high-quality cool roof tiles for terrace.

3. Walls: AAC blocks (Autoclaved aerated concrete)

4. Wardrobe & Loft: Kitchen-open cupboard and RCC loft (as per drawing)

B. FLOORING:

1. Hall, Dining, Kitchen & Bedrooms: Vitrified tiles (20°x 2'0").

2. Toilet, Balcony, Service/utility: Anti-skid Ceramic tiles (10 x 10").

3. Kitchen Counter: Black granite above RCC slab

C. WALL TILES

1. Wall tiles: Glazed tiles (10 x 16") to a height of 7' 0" in toilets and 20 over the kitchen counter.

2. Skirting: Vitrified tiles with 3" height

D. JOINERIES

I. Doors

1. Main door:

a) Frames with seasoned solid Teak wood of 5"x 3" in size.

b) Shutters with 35 mm thick Solid core hardwood content, boiling water proof grade flush door with teak veneer both sides including Varnish finish.

2. Bed Room Doors

a) Frames with Seasoned solid wood of 4" x 3" in size.

b) Shutters with 30 mm thick Solid core hardwood content, boiling water proof grade flush door with Enamel paint finish.

3. Toilet and Service utility doors

a) Frames with Seasoned solid wood of 4" x 2.5" in size.

b) Shutters with 30 mm thick Solid core hardwood content, boiling water proof grade flush door with Enamel paint finish.

II. Windows

1. Hall, Dining and Bedrooms

UPVC frame and openable shutter with 4mm thick plain glass including M.S Grill as per Developer design.

2. Kitchen

UPVC frame and sliding shutters with 4mm thick plain glass including M.S Grill as per Developer design.

III. Ventilators

UPVC frame with louver glass 4mm thick plain as per Developer design

IV. Position of Joineries

Position, size and provision of Doors, Windows and Ventilators: As per Drawing

E. HARDWARE FITTINGS

Locks

1. Main door: With Digi lock

2. Bedroom Door: With Mortice lock

F. FINISHES

1. Wall & Ceiling Finish: Neatly plastered in CM

II. Painting

1. Internal wall & ceiling: Premium emulsion 2 coats over one coat of primer and 2 coats of Putty.

2. External wall: Weather proof exterior emulsion 2 coats over one coat of primer.

3. Wood work: Enamel paint 2 coats over one coat of wood primer and 2 coats of chalk putty.

4. Grills: Enamel paint 2 coats over one coat of metal primer.

5. Car parking Area: Weather proof exterior emulsion paint 2 coats over one coat of primer.

6. Colours and Brand: As per Developer's choice.

G. ELECTRICAL

1. Wiring:

Concealed wiring with IS brand with Appropriate gauge

2. Switches:

Living and Dining with Touch Modular Switches. Other rooms with Legrand lyncus or its equivalent Entire portion without any fittings and fixtures

3. Inverter wiring facility:

Wiring for inverter facility for 1 light point and 1 fan Point in each room without battery and inverter.

4. Points

a) Hall & Dining:

Hall: Fan point-1 No. Light point-4 Nos

TV unit: 5 Amps socket point-5 Nos. TV Point-1 No. Telephone point-1 No.

Dining: Fan point-1 No. Light point-3 Nos

b) Master bedroom:

Fan point-1 No. Light point-2 Nos. 5 Amps socket point-4 Nos. AC point-1 No. TV point-1 No. Telephone point-1 No.

c) Common bedroom:

Fan point-1 No. Light point-2 Nos. 5 Amps socket point-3 Nos. AC point-1 No.

d) Kitchen:

Light point-2 Nos. 5 Amps socket point-3 Nos. 15 Amps socket point-2 Nos. Chimney/Exhaust fan 5 Amps point-1 No.

e) Toilet:

Light point-2 Nos. 15 Amps socket point-1 No. Exhaust fan 5 Amps point-1 No.

H. PLUMBING

I. Pipes:

1. Concealed pipe: CPVC of Ashirwad or its equivalent with suitable diameter

2. Open pipe: PVC Pipe of Truebore or its equivalent with suitable diameter

II. Sanitary

1. Closet: EWC Floor mounted single piece closet in all toilets of Parry ware make or its equivalent.

2. Washbasin: Wall hung wash basin of Parry ware make or its equivalent in all toilets and dining

3. CP fittings: Parryware or its equivalent

4. Sink: Stainless Steel sink of Diamond brand or its equivalent.
