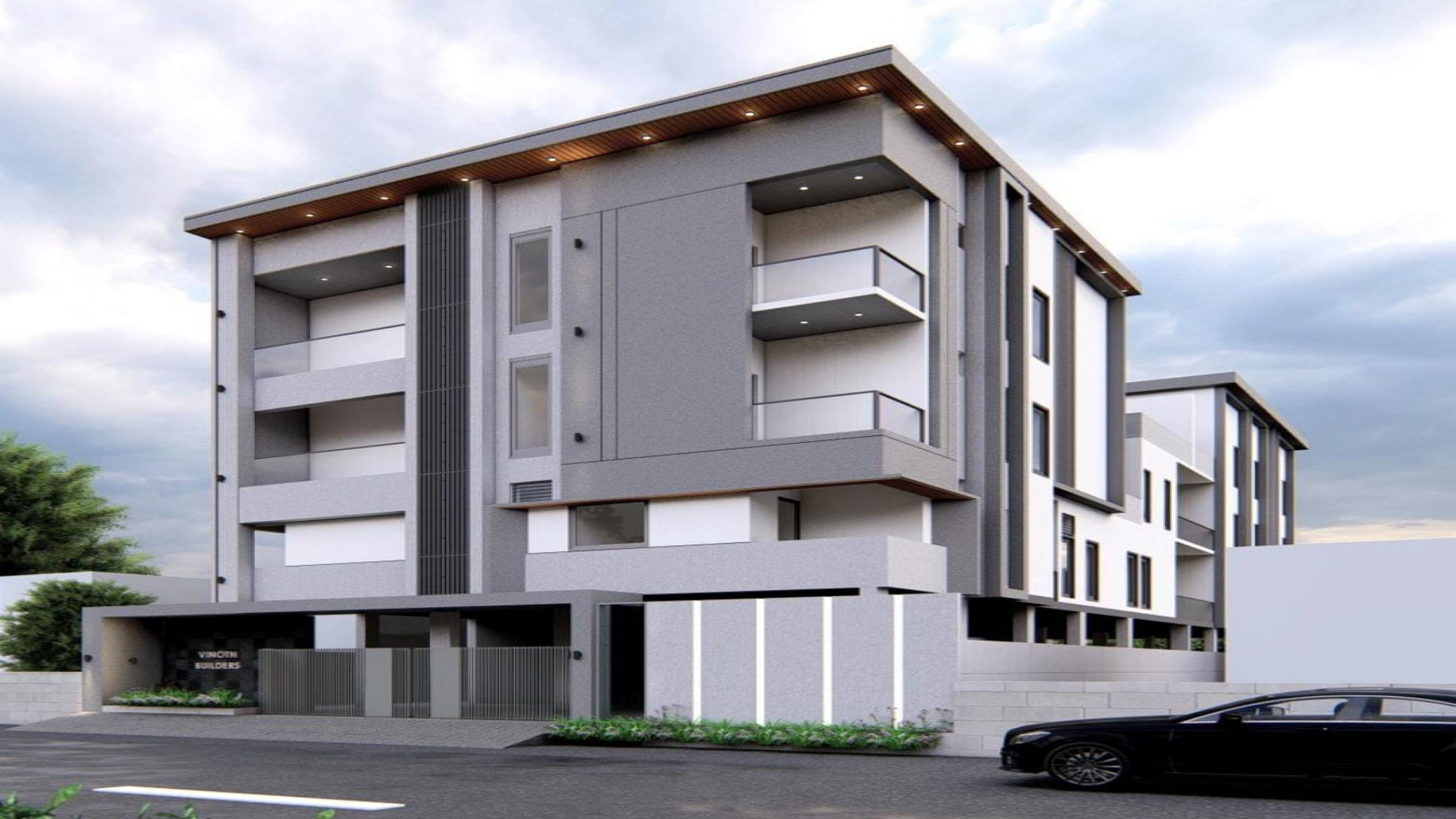

Vinoth Venya

A . STRUCTURE:

Structure : Reinforced cement concrete framed structure

Roof : Reinforced cement concrete roof and high-quality cool roof tiles for the terrace

Walls : AAC blocks (Autoclaved aerated concrete)

Wardrobe & Loft : Kitchen - Open cupboard and RCC loft (as per drawing)

B. FLOORING :

1.Hall, Dining, Kitchen & Bedroom : Vitrified tiles (2’0”x 2’0”).

2.Toilet, Balcony, Service Utility Anti-skid Ceramic tiles (1’0” x 1’0”).

3.Kitchen Counter : Black granite above RCC slab

C.WALL TILES :

Wall tiles Glazed tiles (1’0 x 1’6”) to a height of 7’ 0” in toilets and 2’0” over the kitchen counter.

Skirting : Vitrified tiles with a 3” height

D.. JOINERIES

1.Main door : a) Frames with seasoned solid Teak wood 5”x 3” in size.

b) Shutters with 35 mm thick Solid core hardwood content, boiling waterproof grade flush door with teak veneer on both sides including Varnish finish

a) Frames with Seasoned solid wood of 4” x 3” in size.

b) Shutters with 30 mm thick Solid core hardwood content, boiling waterproof grade flush door with Enamel paint finish

a) Frames with Seasoned solid wood 4” x 2.5” in size.

b) Shutters with 30 mm thick Solid core hardwood content, boiling waterproof grade flush door with Enamel paint finish

1.Hall, Dining, Bedrooms : UPVC frame and openable shutter with 4mm thick plain glass including M.S Grill as per Developer design

2.Kitchen : UPVC frame and sliding shutters with 4mm thick plain glass including M.S Grill as per Developer design

: UPVC frame with louver glass 4mm thick plain as per Developer design

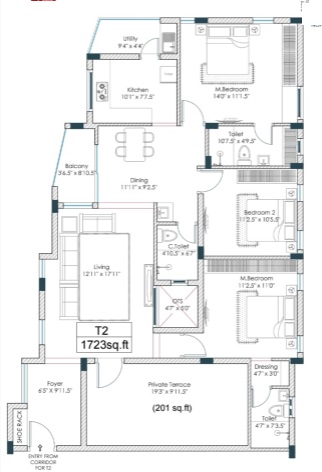

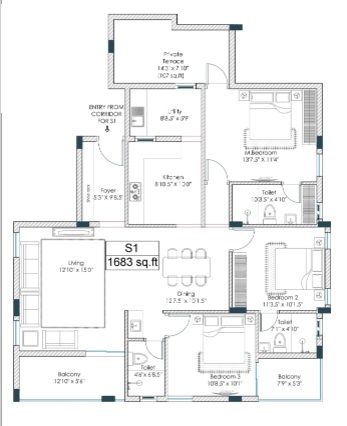

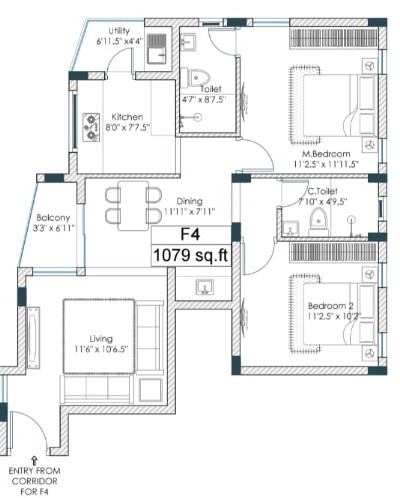

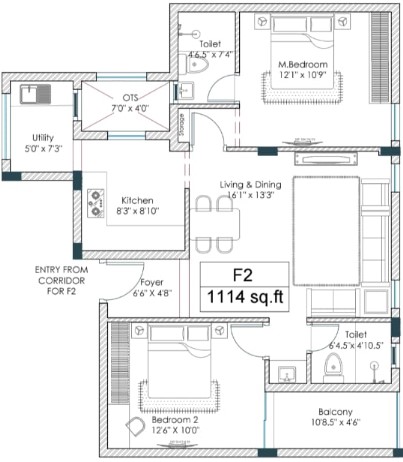

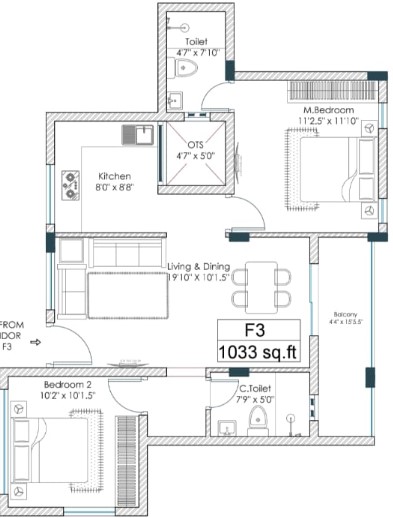

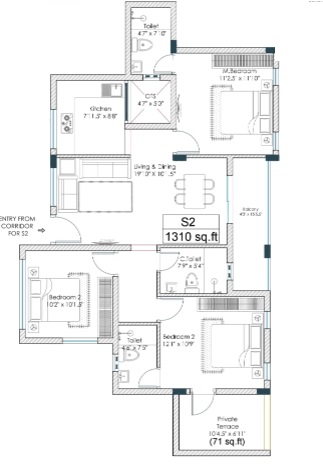

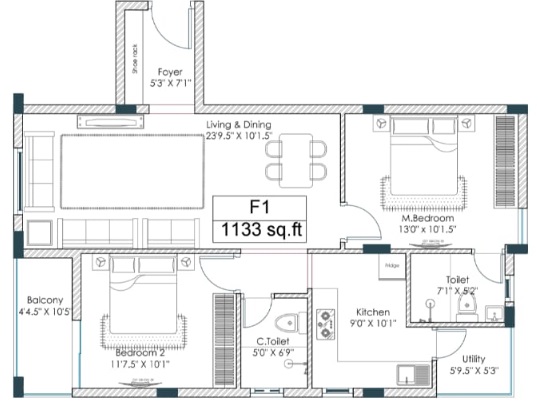

size and Provision of Windows/Ventilator : As Per Drawing

E.HARWARE FITTINGS

a)Main Door : With Digi Lock

b)Bedroom Door : With Mortice Lock

F.FINISHES

1.Wall & Ceiling Finish : Neartly plastered in CM

1.Internal wall & ceiling : Premium emulsion 2 coats over one coat of Primer & 2 coats of Putty.

2.External Wall : Weather proof exterior emulsion 2 coats over one coat of primer.

3.Wood Work : Enamel paint 2 coats over one coat of wood primer & 2 coat of chalk putty.

4.Grills : Enamel paint 2 coats over 1 coat of metal primer.

5.Carparking Area : Weather proof exterior emulsion paint 2 coats over 1 coat of primer.

6.Colours and Brand : As per Developers Choice

G.Electrical

1.Wiring : Concealed wiring with IS brand with Appropriate gauge

2.Swiches : Living and Dining with Touch Modular Switches. Other rooms with Legrand lyncus or its equivalent. Entire portion without any fittings and fixtures

3.Inverter wiring facility : Wiring for inverter facility for 1 light point & 1 fan Point in each room without battery and inverter.

4.Points

a) Hall & Dining : Hall : Fan point – 1 No., Light point – 4 Nos

TV Unit: 5 Amps socket point – 5 Nos, TV Point – 1 No. Telephone point – 1No.

Dining : Fan point – 1 No., Light point – 3 Nos

b) Master Bedroom : Fan point - 1no., Light Point – 1nos, 5 Amps socket point - 4 nos, AC point - 1 no, TV point – 1 no., Telephone point -1 no.

c) Common Bedroom : Fan point-1no, Light point -2nos, 5Amps, socket point – 3 nos, AC point - 1 no

d) Kitchen : Light point -2 nos, 5 Amps socket point- 4 nos, 15 Amps socket point-2 nos

e) Toilet : Light point-2 nos, 15 Amps socket point- 1 no, Exhaust fan point-1 no.

H. PLUMBING

1.Concealed pipe : CPVC of Ashirwad or its equivalent with suitable dia

2.Open pipe PVC Pipe of Truebore or its equivalent with suitable dia

1.Closet : EWC Floor mounted single piece closet in all toilets of Parry ware make or its equivalent.

2.Washbasin : Wall hung wash basin of Parry ware or its equivalent in all toilets & in dinning

3.CP Fittings : Parry ware or its equivalent

4.Sink : Stainless Steel sink of Diamond brand or its equivalent.

I. COMMON AMENITIES

a) Bore well with 102’ depth with 1.5H CRI JET motor from bore to OHT

b) underground sump for metro water with 12500 liters Capacity with 1.5 HP CRI or equivalent submersible motor from sump to OHT.

2.CCTV Surveillance : 8 nos of bullet 2mp Camera with 8 Channel DVR

3.Lift : 6 Passengers Lift with Automatic door, ARD & VVVF

4.Video Door Phone : Video door phone with 4” colour monitor with common access control

5.Car Parking Area : Ceramic Parking Tiles

4.Set Back Areas : Cement concrete inter locking paver block 65mm thick

J. SPECIAL AMENITIES

1.Inside the Flats : Living & Master Bedroom – Any one wall with texture finish coating as per Builder’s choice

2.Safety Amenities : Burglar and Gas Leak Alarm with remote control.

3.Other Amenities : a) Common lights with timer control for Auto on off

b) Children Play Area

Key Distance

1. Nerkundram,bus stand 6 min walk

2. Koyambedu metro station which is 0.8 km away

3. Vengaya Mandi,bus stand 7 min walk

4. Koyambedu Market,21 min walk

5. Padi Kuppam,17 min walk,VIEW
